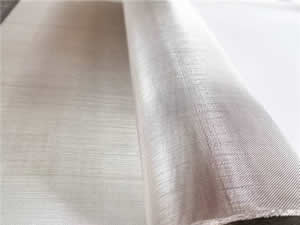

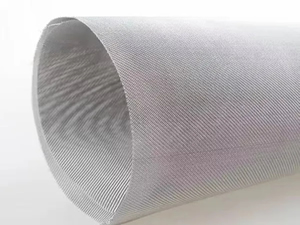

Five heddle weave provides a rectangular opening. The unique design of this mesh can assist increased drainage and flow properties. This mesh also has a smooth surface on one side, which is widely used in filtration of petroleum chemical industries, in the form of filter ribbons and filter elements.
Material:
The main materials of five heddle weave wire cloth is stainless steel wire SUS304, SUS304L, SUS316 and SUS316L.
Applications:
Five heddle weave offers high flow rates and is suitable for high mechanical loads, featuring a lightly structured mesh surface. Five-heddle woven meshes are popular in applications including pressure and vacuum filters as well as filter candles.
Specifications of Five-Heddle Weave Wire Cloth
Width of woven wire cloth: 180+0/-2mm
Weaving type: 5-heddle weave
Standard width of stainless steel wire mesh: 1m or 48"
Standard roll length of stainless steel wire mesh: 30m or 100'.
Packing: wrapped with moister-proof paper, then in wooden cases.
|
Meshes per inch (25.4mm)
Warp x Weft
|
Wire Diameter(mm)
|
Aperture (mm)
Warp x Weft
|
Open Area%
|
Weight(kg/m2)
|
|
108 X 59
|
0.160
|
0.075 X 0.271
|
20
|
1.07
|
|
110 X 60
|
0.160
|
0.071 X 0.263
|
19
|
1.09
|
|
38 X 38
|
0.150
|
0.518 X 0.518
|
60
|
0.43
|
StainelssSteel wire mesh
