310S stainless steel also called 0Cr25Ni20. 310S stainless steel(2520) due to high content of Ni and Cr it is with good oxidation resistance corrosion resistance acid and alkali resistance high temperature resistance. 310S stainless steel the highest temperature is 1200℃ the continuous utilization temperature is 1150℃. 310S stainless steel suitable for making all kinds of exhaust pipe heat treatment furnace heat ex-changer incinerator and other steel which requires heat resistance high heat/high temperature contact parts.

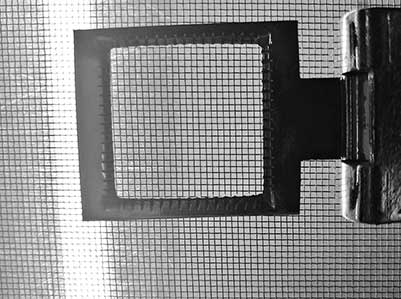

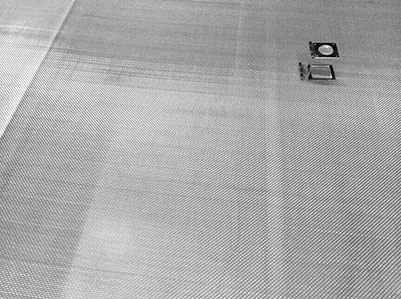

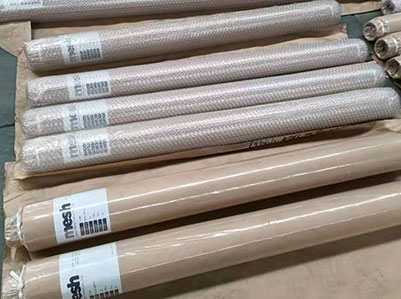

 310S Woven stainless steel wire mesh  310S Stainless steel mesh  310S Stainless steel mesh roll
Application of 310S Stainless Steel Wire Mesh
Petroleum Industry
Electronics Industry
Chemical Industry
Medicine Industry
Textile Industry
Food processing Industry
Nuclear Power Industry
Military Industry
Features of 310S Stainless Steel Wire Mesh
High Temperature Resistance
Oxidation Resistance
Corrosion Resistance
Technical Details
Specification of 310S Stainless Steel Wire Mesh
| MESH |
WIRE DIAMETER |
APERTURE/OPENING |
%OPEN AREA |
| INCH |
MM |
INCH |
MM |
| 1x1 |
.080 |
2.03 |
.920 |
23.37 |
84.6 |
| 2X2 |
.063 |
1.60 |
.437 |
11.10 |
76.4 |
| 3X3 |
.054 |
1.37 |
.279 |
7.09 |
70.1 |
| 4X4 |
.063 |
1.60 |
.187 |
4.75 |
56.0 |
| 4X4 |
.047 |
1.19 |
.203 |
5.16 |
65.9 |
| 5X5 |
.041 |
1.04 |
.159 |
4.04 |
63.2 |
| 6X6 |
.035 |
.89 |
.132 |
3.35 |
62.7 |
| 8X8 |
.028 |
.71 |
.097 |
2.46 |
60.2 |
| 10X10 |
.025 |
.64 |
.075 |
1.91 |
56.3 |
| 10X10 |
.020 |
.51 |
.080 |
2.03 |
64.0 |
| 12X12 |
.023 |
.584 |
.060 |
1.52 |
51.8 |
| 12X12 |
.020 |
.508 |
.063 |
1.60 |
57.2 |
| 14X14 |
.023 |
.584 |
.048 |
1.22 |
45.2 |
| 14X14 |
.020 |
.508 |
.051 |
1.30 |
51.0 |
| 16X16 |
.018 |
.457 |
.0445 |
1.13 |
50.7 |
| 18X18 |
.017 |
.432 |
.0386 |
.98 |
48.3 |
| 20X20 |
.020 |
.508 |
.0300 |
.76 |
36.0 |
| 20X20 |
.016 |
.406 |
.0340 |
.86 |
46.2 |
| 24X24 |
.014 |
.356 |
.0277 |
.70 |
44.2 |
| 30X30 |
.013 |
.330 |
.0203 |
.52 |
37.1 |
| 30X30 |
.012 |
.305 |
.0213 |
.54 |
40.8 |
| 30X30 |
.012 |
.305 |
.0213 |
.54 |
40.8 |
| 30X30 |
.009 |
.229 |
.0243 |
.62 |
53.1 |
| 35X35 |
.011 |
.279 |
.0176 |
.45 |
37.9 |
| 40X40 |
.010 |
.254 |
.0150 |
.38 |
36.0 |
| 50X50 |
.009 |
.229 |
.0110 |
.28 |
30.3 |
| 50X50 |
.008 |
.203 |
.0120 |
.31 |
36.0 |
| 60X60 |
.0075 |
.191 |
.0092 |
.23 |
30.5 |
| 60X60 |
.007 |
.178 |
.0097 |
.25 |
33.9 |
| 70X70 |
.0065 |
.165 |
.0078 |
.20 |
29.8 |
| 80X80 |
.0065 |
.165 |
.0060 |
.15 |
23.0 |
| 80X80 |
.0055 |
.140 |
.0070 |
.18 |
31.4 |
| 90X90 |
.005 |
.127 |
.0061 |
.16 |
30.1 |
| 100X100 |
.0045 |
.114 |
.0055 |
.14 |
30.3 |
| 100X100 |
.004 |
.102 |
.0060 |
.15 |
36.0 |
| 100X100 |
.0035 |
.089 |
.0065 |
.17 |
42.3 |
| 100X100 |
.0035 |
.089 |
.0065 |
.17 |
42.3 |
| 110X110 |
.0040 |
.1016 |
.0051 |
.1295 |
30.7 |
| 120X120 |
.0037 |
.0940 |
.0064 |
.1168 |
30.7 |
| 150X150 |
.0026 |
.0660 |
.0041 |
.1041 |
37.4 |
| 160X160 |
.0025 |
.0635 |
.0038 |
.0965 |
36.4 |
| 180X180 |
.0023 |
.0584 |
.0033 |
.0838 |
34.7 |
| 200X200 |
.0021 |
.0533 |
.0029 |
.0737 |
33.6 |
| 250X250 |
.0016 |
.0406 |
.0024 |
.0610 |
36.0 |
| 270X270 |
.0016 |
.0406 |
.0021 |
.0533 |
32.2 |
| 300X300 |
.0051 |
.0381 |
.0018 |
.0457 |
29.7 |
| 325X325 |
.0014 |
.0356 |
.0017 |
.0432 |
30.0 |
| 400X400 |
.0010 |
.0254 |
.0015 |
.370 |
36.0 |
| 500X500 |
.0010 |
.0254 |
.0010 |
.0254 |
25.0 |
| 635X635 |
.0008 |
.0203 |
.0008 |
.0203 |
25.0 |
Note: Special size and specifications can be made according to customers requires.
Chemical Composition of 310S Stainless Steel Wire Mesh
| |
C |
Si |
Mn |
P |
S |
Ni |
Cr |
| MIN |
- |
- |
- |
- |
- |
19.0 |
24.0 |
| MAX |
0.25 |
1.50 |
2.00 |
0.045 |
0.003 |
22.0 |
26.0 |
|
