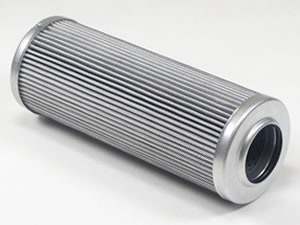

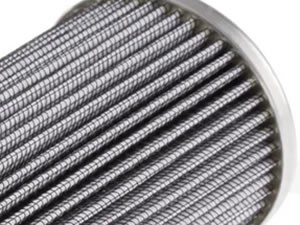

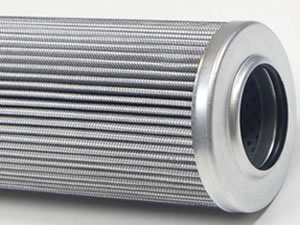

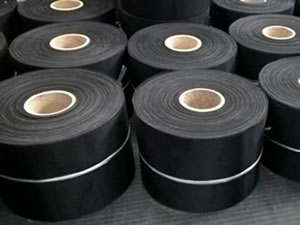

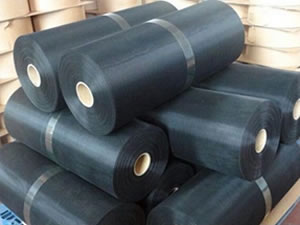

Epoxy coated wire mesh usually used as a support layer for hydraulic filters and air filters, it assures good results in pleating, provide maximum air flow and peak filtration.
Material: Low carbon steel wire, stainless steel wire, aluminium wire and other wires.
Characteristic: Lightweight, resilient,uniform aperture, acid and alkali resistant, corrosion preventive, high temperature resistance, environmental protection, etc.
Application: Mainly used as support layer of hydraulic and air filters, also used for window screen and protective screen.
Epoxy coated wire mesh can also used as insect screens for windows and doors. It is widely used to resist the flies, mosquitoes, bug and other insects in hotels, buildings and residences.
Color: Black, grey or customized specification.
Product Features
- High tensile
- Light weight
- High elongation
- Anti-corrosion and rust
- Excellent ventilation
- Easy to wash and clean
Epoxy Coated Wire Mesh Specifications
| No. |
Substrate material |
coating |
specification |
(mm)width |
(m)length |
Applied industry |
| 1 |
Q195 |
black color &Oil resistance |
18x14/0.18 |
20mm-1250mm |
30m-914m |
hydraulics |
| 2 |
Q195 |
black color &oil resistance |
18x14/0.18 |
20mm-1250mm |
30m-914m |
hydraulics |
| 3 |
Q195 |
black color &Oil resistance |
12x10/0.254 |
50mm-1250mm |
30-914m |
hydraulics |
| 4 |
Q195 |
black color &Oil resistance |
22x20/0.18 |
20mm-1250mm |
30m-914m |
hydraulics |
| 5 |
Q195 |
white color &Oil resistance |
18x14/0.18 |
20mm-1250mm |
30m-914m |
hydraulics |
| 6 |
5154A(H39) |
gray color &weatherproof |
17x15/0.26 |
20mm-1250mm |
30m-914m |
air filtration |
| 7 |
5154A(H39) |
black color &Oil resistance |
18x14/0.21 |
20mm-1250mm |
30m-914m |
hydraulics |
| 8 |
5154A(H39) |
black color &weatherproof |
18x15/0.28 |
20mm-1250mm |
30m-914m |
window screen |
| 9 |
Huanya could do the customized products as per the working environment |
Epoxy Coated Wire Mesh Specifications
| No. |
Substrate material |
coating |
specification |
(mm)width |
(m)length |
Applied industry |
| 1 |
Q195 |
black color &Oil resistance |
18x14/0.16 |
20mm-1250mm |
30m-914m |
hydraulics |
| 2 |
Q195 |
black color &oil resistance |
22x10/0.16 |
20mm-1250mm |
30m-914m |
hydraulics |
| 5 |
Q195 |
white color &Oil resistance |
18x14/0.21 |
20mm-1250mm |
30m-914m |
hydraulics |
| 6 |
5154A(H39) |
gray color &weatherproof |
18x16/0.28 |
20mm-1250mm |
30m-914m |
air filtration |
| 7 |
5154A(H39) |
black color &Oil resistance |
18x16/0.25 |
20mm-1250mm |
30m-914m |
hydraulics |
| 8 |
5154A(H39) |
black color &weatherproof |
18x16/0.23 |
20mm-1250mm |
30m-914m |
window screen |
| 9 |
SS304 |
Weather Resistance |
18x16/0.23 |
20mm-1250mm |
30m-200m |
window screen |
| 10 |
SS316 |
Weather Resistance |
12/0.35 |
20mm-1250mm |
30m-200m |
window screen |
| 11 |
SS316 |
Weather Resistance |
11/0.8 |
20mm-1250mm |
30m-200m |
window screen |
|
